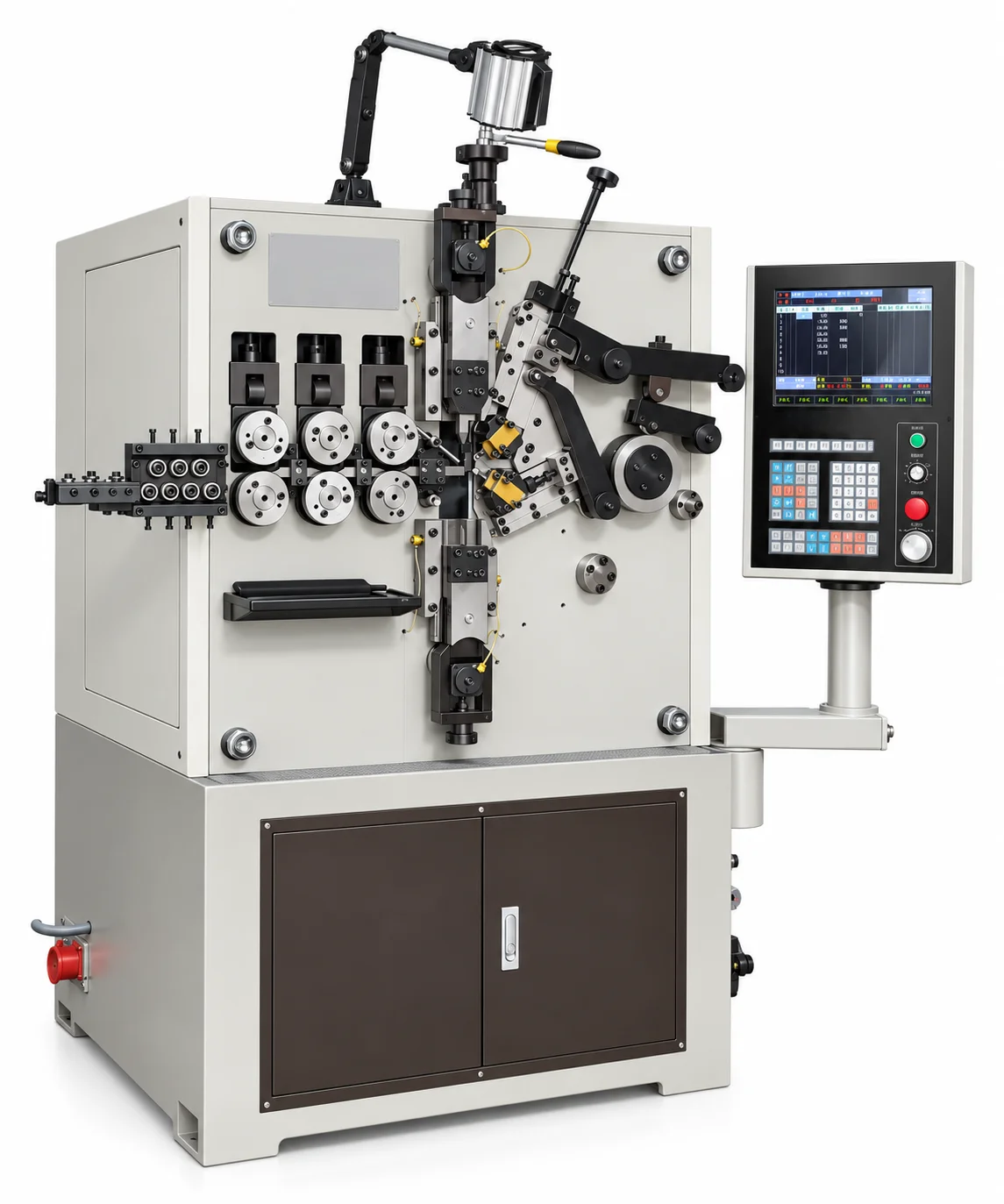

CNC Compression Spring Machines
Six CNC Compression Spring Machine models cover a Ø0.15–6 mm wire range across 2 to 7 axes, with maximum outer diameters from Ø22 mm to Ø90 mm.
CNC Compression Spring Machine
Selection Overview
Final machine selection is confirmed after reviewing your part drawing and production requirements.
Model Overview
A CNC compression spring machine coils wire into compression springs. In this product range, these machines may also be described as spring coiling machines or compression spring coiling machines. The six models are listed below with their wire range, axes and maximum outer diameter. Send us your part drawing and our engineers will help confirm the right model.
Quick Compare — CNC Compression Spring Machines
| Model | Wire Range | Axes | Max Outer Diameter |
|---|---|---|---|
| HM-S208 | Ø0.15–0.8 mm | 2 | Ø22 mm |
| HM-S508 | Ø0.15–0.8 mm | 5 | Ø30 mm |
| HM-S708 | Ø0.15–0.8 mm | 7 | Ø30 mm |
| HM-S212 | Ø0.3–1.2 mm | 5 | Ø22 mm |
| HM-S540 | Ø1.2–4 mm | 5 | Ø65 mm |
| HM-S560 | Ø2–6 mm | 5 | Ø90 mm |
Not sure which of the six models fits your part? Send us your part drawing and production requirements — our engineers will help confirm the right configuration.
Frequently Asked Questions
Ready to move forward with a CNC Compression spring machine?
Our engineers will review your drawing and respond with feasibility and machine recommendations.
