Wire Bending Machines
CNC wire bending machines, from 3D multi-axis systems to double-head wire bending machines.
- 3D CNC Wire Bending Machines
- Double-Head Wire Bending Machines
Choose the Wire Bending Technology Route
01
3D CNC Wire Bending Machines
- Wire range
- Ø1–18 mm
- Axes
- 5–6 (single forming head)
- Models
- 6
02
Double-Head Wire Bending Machines
- Wire range
- Ø1–10 mm
- Axes
- 14–20 (dual forming head)
- Max bending length
- up to 2500 mm
Final machine selection is confirmed after reviewing the part drawing and production requirements.

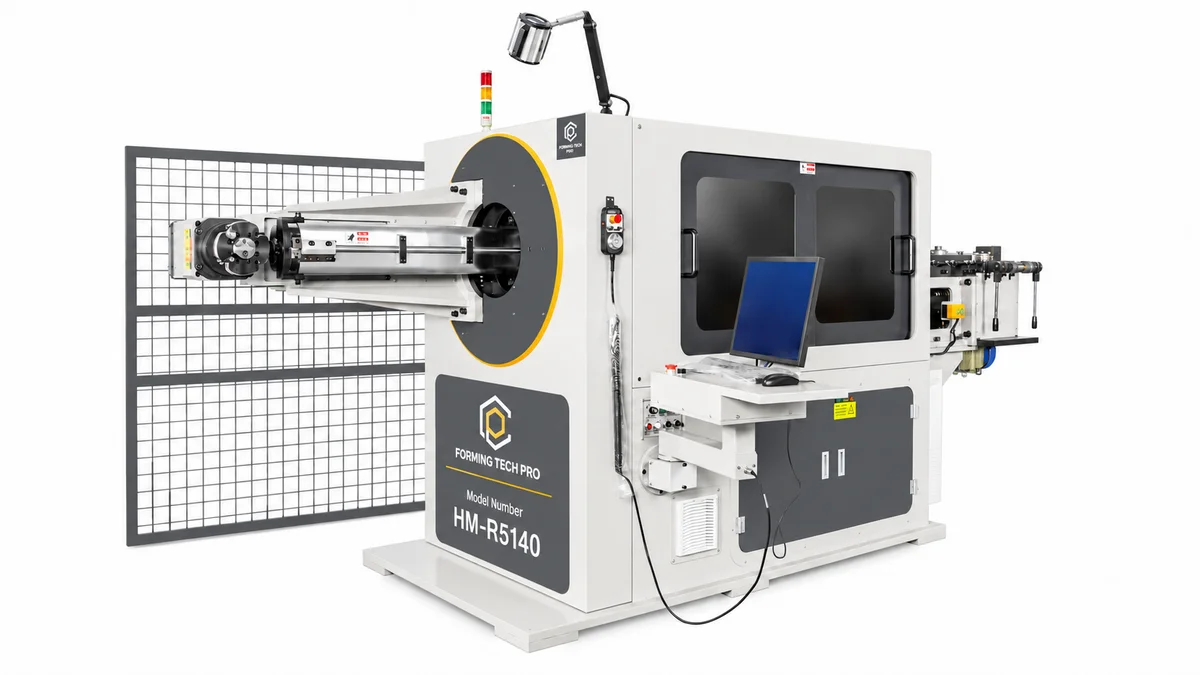

3D CNC Wire Bending Machines
Six 3D CNC Wire Bending Machine models cover a Ø1–18 mm wire range, each built around a single multi-axis forming head (5–6 axes).
Quick Compare — 3D CNC Wire Bending Machines
| Model | Wire Range | Axes |
|---|---|---|
| HM-R640 | Ø1–4 mm | 6 |
| HM-R580 | Ø2.5–8 mm | 5 |
| HM-R5100 | Ø5–10 mm | 5 |
| HM-R5120 | Ø5–12 mm | 5 |
| HM-R5140 | Ø5–14 mm | 5 |
| HM-R5160 | Ø6–18 mm | 5 |
Double-Head Wire Bending Machines
Two Double-Head Wire Bending Machine models use coordinated forming heads across 14–20 axes, with maximum bending lengths up to 2500 mm.
Quick Compare — Double-Head Wire Bending Machines
| Model | Wire Range | Axes | Max Bending Length |
|---|---|---|---|
| HM-DH1480 | Ø3–10 mm | 14 | 2500 mm |
| HM-DH1920 | Ø1–2.5 mm | 19/20 | ~1800 mm |
Send us your part drawing and production requirements — our engineers will review the application and help confirm the right machine configuration.
Frequently Asked Questions
Ready to discuss your wire bending application?
Our engineers will review your drawing and respond with feasibility and machine recommendations.
