Double-Head Wire Bending
Double-Head Wire Bending Machines
Two Double-Head Wire Bending Machine models — HM-DH1480 and HM-DH1920 — use coordinated dual forming heads across 14–20 axes, covering a Ø1–10 mm wire range with maximum bending lengths up to 2500 mm.

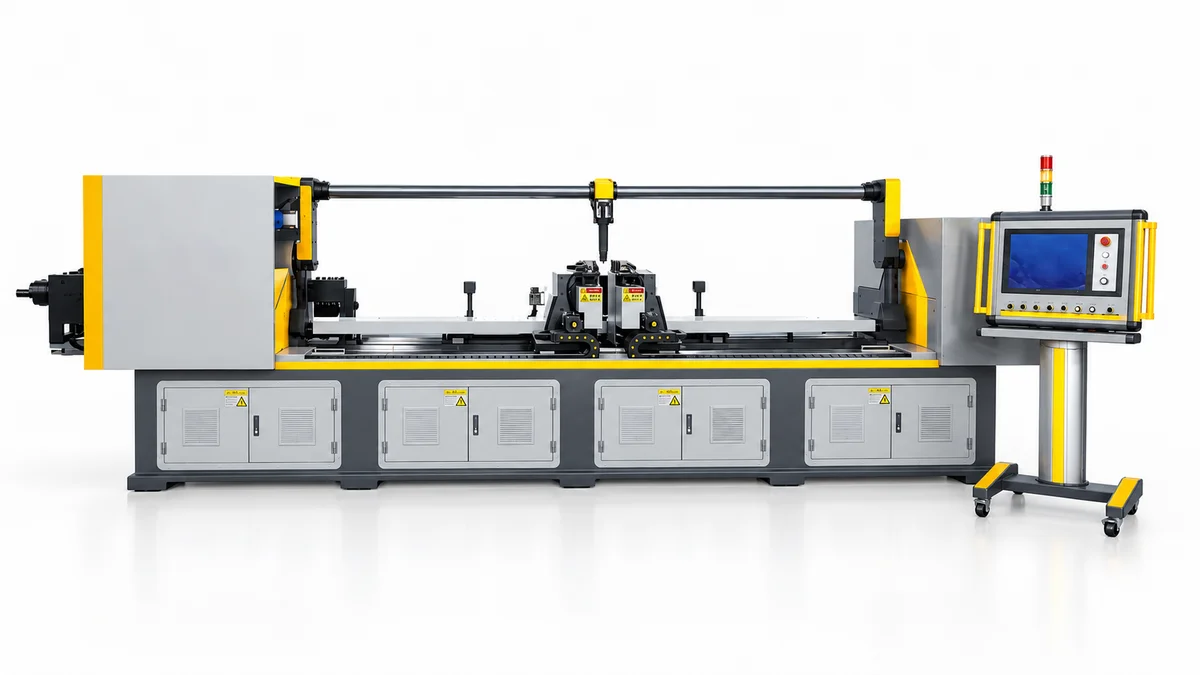

Double-Head Wire Bending Machine
Selection Overview
HM-DH1480
Wire RangeØ3–10 mm
Axes14
Max Bending Length2500 mm
HM-DH1920
Wire RangeØ1–2.5 mm
Axes19/20
Max Bending Length~1800 mm
Final machine selection is confirmed after reviewing your part drawing and production requirements.
Model Overview
Quick Compare — Double-Head Wire Bending Machines
| Model | Wire Range | Axes | Max Bending Length |
|---|---|---|---|
| HM-DH1480 | Ø3–10 mm | 14 | 2500 mm |
| HM-DH1920 | Ø1–2.5 mm | 19/20 | ~1800 mm |
Not sure which of the two configurations fits your part? Send us your part drawing and production requirements — our engineers will help confirm the right machine configuration.
Frequently Asked Questions
Ready to move forward with a Double-Head wire bending machine?
Our engineers will review your drawing and respond with feasibility and machine recommendations.
